Product Details:
Payment & Shipping Terms:
|
Voltage: | 220V/380V | Condition: | New |
---|---|---|---|
Warranty: | One Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Power(w): | 200KW | Product Type: | Egg Tray Machine,Egg Box Machine |
Processing Type: | Pulp Molding Machine | Raw Material: | Waste Paper,cartons And Mixed Waste Paper. |
Color: | Customized Color | Finished Products: | Coffee Tray,Egg Tray Egg Carton'/egg Plate/egg Box,wine Tray |
Fuel: | Diesel,Natural Gas,Heavy Oil,LPG | Capacity: | 6000+6500 PCS/hour |
High Light: | automatic egg tray making machine,egg tray manufacturing plant |

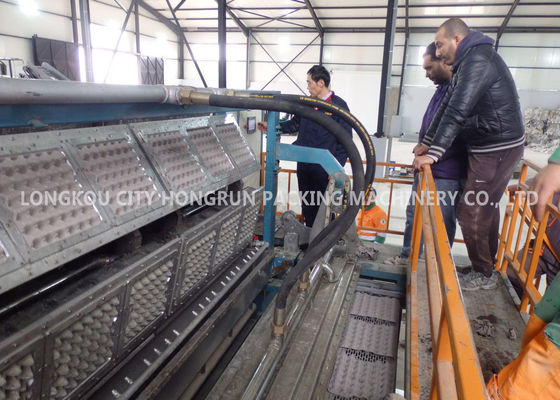

Full-Automatic Recycled Waste Paper Pulp Egg Tray Carton Machine
Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production. Our forming machines adopt advanced PLC programmable controller; selecting of high quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.
The whole production line is fully automatic running, which can minimize labor costs.
The specifications of the pulp molding production lines are divided due to different customer preferences, market demands, labor cost, energy cost, field availability and climate in different areas, considering this, our company developed many pulp molding production lines in different specifications to meet the customer’s requirements:
HRZ-2000M, HRZ-3000M, HRZ-4000M, HRZ-5000M, HRZ-6000M, HRZ-8000M.
The above mentioned production lines are suitable for the following products: Egg tray(30-packed, 20-packed etc.), egg box/carton(6-packed, 10-packed,12-packed, 6+6-packed,15-packed,18-packed and etc.), fruit tray(for apple, tomato, pear and etc.), cup carrier(4 packed and 2 packed), some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
HRZ-6000M rotary type automatic paper pulp molding production line system basic constitution
The HRZ-5000M rotary type automatic paper pulp molding production line constituted by five large-scale systems:
(1) Pulping system
(2) Forming machine
(3) Drying system
(4) Finished products automatic stacking, collection and manual packing system
(5) Electricity control system
Specifications
Item | Information | Notes |
Output Range | 6000pcs/h | 30 packed egg tray(60~80g) |
Workshop recommendation | ≥600m2 |
Length≥40m;Width≥15m;Height≥6m; (It could be adjusted according to the user's existing workshop) |
Type of Material | Waste paper |
Newspaper/Carton /Paper box/Books/ Corrugated paper/Kraft paper etc. |
Material consumption | 360~480kg/h | 30 packed egg tray(60~80g) |
Water consumption | 800-1050kg/h | 30 packed egg tray(60~80g) |
Electricity consumption | 140-175kw/h | Full throttle operation |
Fuel consumption (approximately) |
LPG 55~70 kg/h |
30 packed egg tray(60~80g) Choose one from these types of fuel |
Natural gas 85~100 m3/h | ||
Diesel 65~80kg/h | ||
Operator Required | 5~8 person/shift | 24hours, 3shift |
Container requirement for Transport | 5 of 40 HQ container + 1 of 20’GP container | Whole production line |
Production flow chart
