Payment & Shipping Terms:
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Voltage:||220V50HZ/380V50HZ|
|Product Type:||Egg Tray Machine||Processing Type:||Pulp Molding Machine|
|Capacity:||2000-2500pcs/H||Product Name:||Egg Tray Making Machine|
|Finished Products:||Fruit Tray,Egg Tray Egg Carton,coffee Tray,wine Tray||Type:||Automatic|
|Fuel:||Diesel,Natural Gas,Heavy Oil,LPG||Application:||Egg Tray,Egg Tray Moulding/ Waste Paper Making,Holding Eggs|
paper tray making machine,
egg tray manufacturing plant

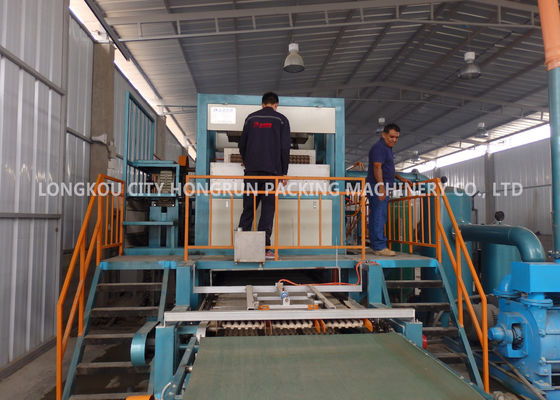

Rotary Drum Paper Fruit Tray Egg Tray Production Machine 2000 - 2500PCS / H
Our molding machines and molding dies are fully designed by computer-assistant engineering and high technology. It has been proven high efficiency, low maintenance and energy saving during the ten year practice. The pulp molding system can use all kinds of waste paper to produce high quality molded fibre products. Such as, egg trays, egg boxes, apple trays, meat portion trays, vegetable portion trays, fruit portion trays, strawberry punnets, kidney trays, wine packs, can trays, seed pots, seed cubes, etc. it is a satisfyingly high return investment for the entrepreneurs or investors who wants a stable and consistent business.
The whole production line is fully automatic running, which can minimize labor costs.
The specifications of the pulp molding production lines are divided due to different customer preferences, market demands, labor cost, energy cost, field availability and climate in different areas, considering this, our company developed many pulp molding production lines in different specifications to meet the customer’s requirements:
HRZ-2000M, HRZ-3000M, HRZ-4000M, HRZ-5000M, HRZ-6000M, HRZ-8000M.
The above mentioned production lines are suitable for the following products: Egg tray(30-packed, 20-packed etc.), egg box/carton(6-packed, 10-packed,12-packed, 6+6-packed,15-packed,18-packed and etc.), fruit tray(for apple, tomato, pear and etc.), cup carrier(4 packed and 2 packed), some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
HRZ-2000M rotary type automatic paper pulp molding production line system basic constitution
The HRZ-2000M rotary type automatic paper pulp molding production line constituted by five large-scale systems:
(1) Pulping system
(2) Forming machine
(3) Drying system
(4) Finished products automatic stacking, collection and manual packing system
(5) Electricity control system
The raw materials are mainly from various pulp boards such as reed pulp, straw pulp, slurry, bamboo pulp and wood pulp, and waste paperboard, waste paper box paper, waste white paper, paper mill tail pulp waste, etc. Waste paper, widely sourced and easy to collect. The required operator is 5 people/class: 1 person in the pulping area, 1 person in the molding area, 2 people in the cart, and 1 person in the package.
Specification of machine
|Output Range||2000pcs/h||30 packed egg tray(60~80g)|
Length≥32m;Width≥15m;Height≥6m; (It could be adjusted according to the
user's existing workshop)
|Type of Material||Waste paper||Newspaper/Carton /Paper box/Books/ Corrugated paper etc.|
|Material consumption||120~160kg/h||30 packed egg tray(60~80g)|
|Water consumption||265-350kg/h||30 packed egg tray(60~80g)|
|Electricity consumption||70-90kw||Full throttle operation|
|LPG 30~40 kg/h||Choose one from the three types of fuel|
|Natural gas 35~50 m3/h|
|Diesel 30~40 kg/h|
|Operator Required||4~6 people/shift||24hours, 3shift|
|Container requirement for Transport||
2 of 40’HQ container +
1 of 20’GP container
|Whole production line|
High precision servo motor drive,high efficiency and energy-saving drying line.
1,Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2,Use absolute encoder to achieve accurate correction.
3,The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4,The use of mechanical structure to ensure that the mold close on both sides evenly.
5,Large capacity; Water content is low;Save the cost of drying.
