Automatic Rotary Pulp Molding Machines For Making Egg Tray Egg Box Fruit Tray
Egg Tray Making Machine Brief Description
The project uses waste paper, waste paper as raw material to produce egg carton tray.
Mainly used for the products with simple structure but in big quantity, such as paper egg trays, fruit trays, egg box/carton, Wine's packaging, Industrial packaging, and other special paper pulp molding products. This type of production line is comprised of pulp making system, forming system, drying system, and collection system. The raw material is waste paper. It's high-efficiency, energy-saving, durable, wieldy and safe.
Knowledge Note of Egg tray machine

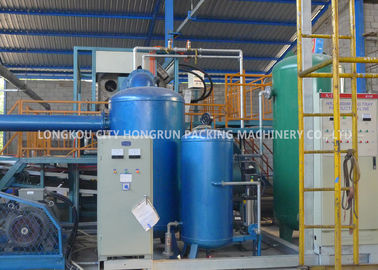

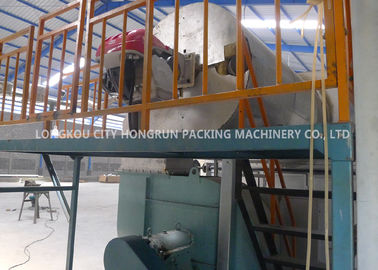

Pulping system: Pulper, Grinding Machine, Mixer, Stuff Pump, Water Pump, Control Cabinet, etc.

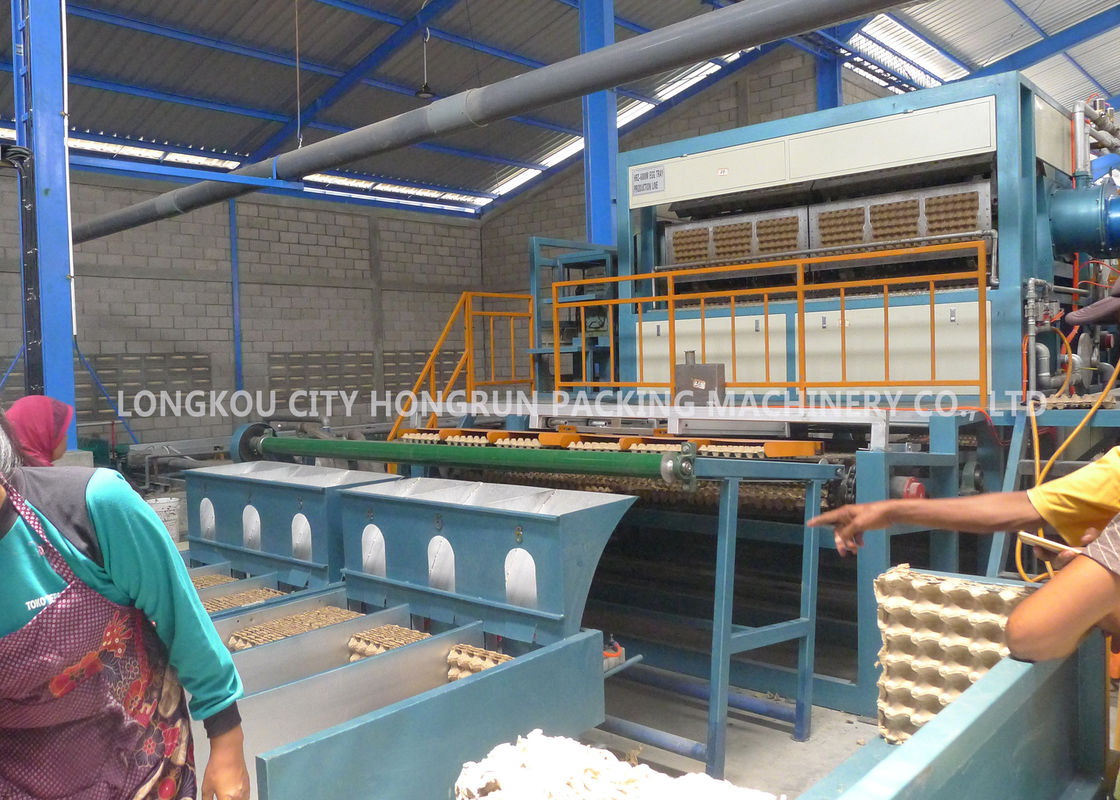

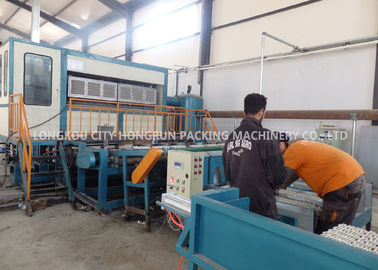

Forming System: This equipment consists of 8 forming pattern plates and 1 transfer plate. The size of each plate is 1470mm×470mm and each plate can carry 4 sets of 30pcs egg tray mould, a totally is 32 sets. The molding efficiency is 13-15 plates/minutes. It is equipped with the automatic vacuum drainage system, automatic plate washing system, pre-drying system and automatic control cabinet.
Drying System: There are 2 kinds of the drying systems. One is metal, the other is civil engineering. The conveyor plate can be one layer and multi-layer, direct combustion hot air circulation. Using the imported or joint venture brand burner (domestic uses the stove bar), equipped with an automatic control cabinet.
Specification of machine
Item | Information | Notes |
Output Range | 6000pcs/h | 30 packed egg tray(60~80g) |
Workshop recommendation | ≥600m2 |
Length≥40m;Width≥15m;Height≥6m; (It could be adjusted according to the user's existing workshop) |
Type of Material | Waste paper |
Newspaper/Carton /Paper box/Books/ Corrugated paper/Kraft paper etc. |
Material consumption | 360~480kg/h | 30 packed egg tray(60~80g) |
Water consumption | 800-1050kg/h | 30 packed egg tray(60~80g) |
Electricity consumption | 140-175kw/h | Full throttle operation |
Fuel consumption (approximately) |
LPG 55~70 kg/h |
30 packed egg tray(60~80g) Choose one from these types of fuel |
Natural gas 85~100 m3/h | ||
Diesel 65~80kg/h | ||
Operator Required | 5~8 person/shift | 24hours, 3shift |
Container requirement for Transport | 5 of 40 HQ container + 1 of 20’GP container | Whole production line |
Our service:
1. We have our own factory that can provide professional design and stability product quality, and also we can offer the most reasonable prices.
2. We can send the machine about 20 days.
3. We have our own professional sales teams who have rich experiences on the international trade and good technical knowledges.
4. We can offer the the services install the machines to your country after the machines were ordered.
5. If the machines have any problems, we will offer the parts and the tools for the repairment for free witin 1 year. And our the warranty is 1 year.
6. We welcome customers to inspectour our production line. And if you come, the relevant person will pick up customers at the airport.
