Voltage: | 220V/380V | Condition: | New |
---|---|---|---|
Weight: | 3000kg | Dimension(l*w*h): | 3.3m*2.6m*2.7m |
Processing Type: | Pulp Molding Machine | Color: | Customized Color |
Name: | Small Semi-automatic Paper Recycling Egg Tray Making Machine Apple Tray Machine | Raw Material: | Waste Paper,waste Old Book,waste Newspaper,waste Carton |
Highlight: | apple tray making machine,egg tray manufacturing machine |
Small Semi-automatic Paper Recycling Egg Tray Making Machine Apple Tray Machine
Brief introduction line of egg tray making
Egg tray molding production line is process waste paper into various paper tray, like egg tray, beer tray, shoes tray, rice-seedling tray, fruit tray etc. The mould can be customized with pattern or word according to customer's requirements.
Raw materail :
1. Waste paper :Such as cardboard, cardboard boxes, newspapers, paper mills and other waste paper
2.Pulp board :Pulp board made of straw, bagasse, bamboo, wood and other raw materials
3.Plant Fibres :Palm fiber, straw, sugar cane and so on
Finished product: All kinds of egg tray , egg box ,fruit tray, wine tray, cup tray ,shoe tray ect.
Composition of the egg tray production line
Paper pulp molding egg tray production line is comprised by 3 systems as pulping system, forming system and drying system.
1. Pulping System
It includes raw paper smashing, impurities removing, pulp defibering, additives, pulp further grinding,
Pulp blending, pulp supplying etc.
Related machines: Hydropulper, (vibration screen, pulp grinder),agitator, pulp pump, pipe and so on.

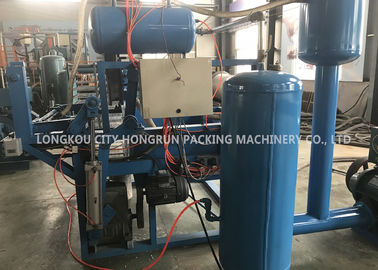

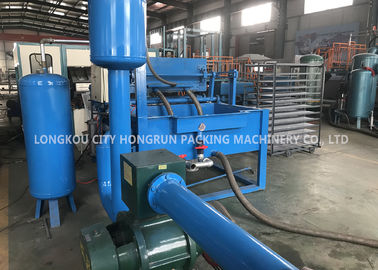

2. Forming System
The forming system is the process to produce the wet egg tray by forming machine.
The whole process includes the forming machine, moulds, vacuum pump, steam separator, air compressor, air storage tank and so on.
Forming machine is one of the main equipment of the whole egg tray (box) production line. Its function is to produce the wet egg trays. So it is the important supporter for the line.
Only under the forming machine’s co-working, the molds, the negative pressure control, the positive pressure control can realize their functions.

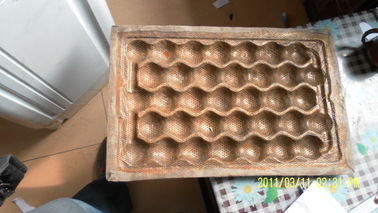

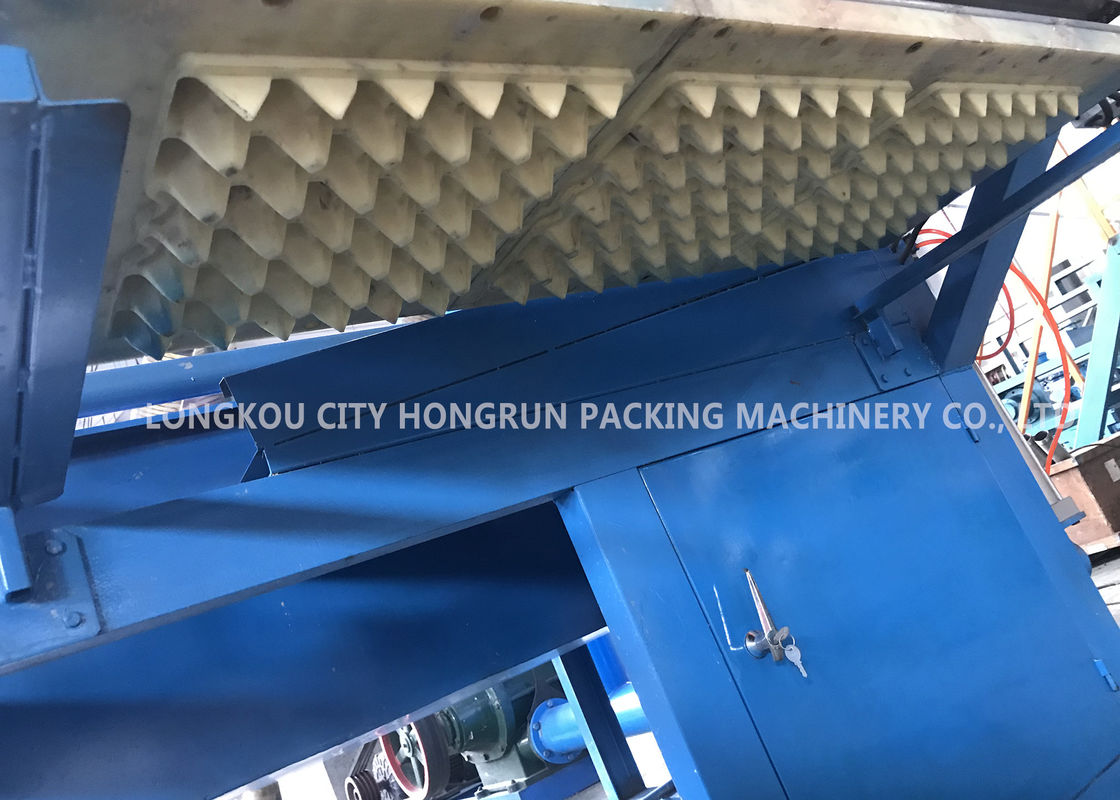

Paper pulp molding molds
The molds are the spirit part of the paper pulp molding production line.
The forming moulds is the molds which to transform the fiber pulp into the wet trays.
The forming moulds are including forming and transferring 2 different type moulds.
The materials for the forming moulds are copper, aluminum, plastic and aluminum-plastic composite materials and so on.
Technical data
Item | Information | Notes |
Output | 1000pcs/h |
30 packed egg tray (60~90g) |
Workshop recommendation | ≥200m2 |
Length≥20m;width≥10m;height≥6m; (It could be adjusted according to the user's existing workshop) |
Type of Material | Waste paper |
Newspaper/Carton/Paper box/Books/ Corrugated paper etc. |
Electricity consumption | 23-30kW·h/hr | Full throttle operation |
Material consumption | 65~80kg/hr |
30 packed egg tray (60~90g) |
Water consumption | 150-180kg/hr |
30 packed egg tray (60~90g) |
Operator Required | 2-4 people/shift | 24hours, 3shift |
Container requirement for Transport | 1 of 20’GP container | Whole production line |
1.Installation: two technicians will be at site for installation and cost should be borne by buyer
2. Warranty: one year (Except the man-made damage). After one year, only charge for the spare parts and service.
